This object is intended to be a flavoursome version of MssmSoftsusy. More...

#include <flavoursoft.h>

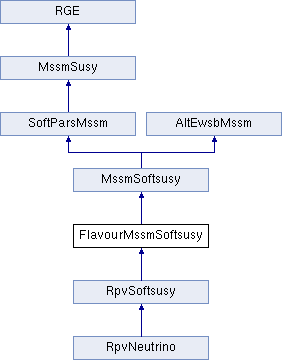

Inheritance diagram for FlavourMssmSoftsusy:

Public Member Functions
	FlavourMssmSoftsusy ()
	constructor functions
	FlavourMssmSoftsusy (const FlavourMssmSoftsusy &s)
const FlavourMssmSoftsusy &	operator= (const FlavourMssmSoftsusy &s)
double	displayTheta12 () const
	standard set and display functions
double	displayTheta13 () const
double	displayTheta23 () const
double	displayDelta () const
double	displayThetaB12 () const
double	displayThetaB13 () const
double	displayThetaB23 () const
double	displayMnuE () const
double	displayMnuMu () const
double	displayPoleMe () const
double	displayPoleMmu () const
double	displayMd2GeV () const
double	displayMu2GeV () const
double	displayMs2GeV () const
double	displayMcMc () const
double	displayMnuTau () const
const flavourPhysical &	displayFlavourPhysical () const
const FlavourMssmSoftsusy &	displayFlavourSoftsusy () const
void	setFlavourSoftsusy (const FlavourMssmSoftsusy &s)
void	setTheta12 (double d)
void	setTheta13 (double d)
void	setTheta23 (double d)
void	setDelta (double d)
void	setThetaB12 (double d)
void	setThetaB13 (double d)
void	setThetaB23 (double d)
void	setMnuE (double d)
void	setMnuMu (double d)
void	setMnuTau (double d)
void	setPoleMe (double d)
void	setPoleMmu (double d)
void	setMd2GeV (double d)
void	setMu2GeV (double d)
void	setMs2GeV (double d)
void	setMcMc (double d)
void	setFlavourPhys (const flavourPhysical &s)
	Sets all squark flavour violating physical parameters.
void	setInitialData (const QedQcd &r)
	Sets the initial data from a un-run QedQcd object.
const DoubleMatrix	displayCkm () const
const ComplexMatrix	displayComplexCkm () const
	same as displayCkm, except the phase is properly incorporated
const DoubleMatrix	displayMns () const
	constructs a MNS matrix out of the angles stored within
virtual void	lesHouchesAccordOutput (ostream &out, const char model[], const DoubleVector &pars, int sgnMu, double tanb, double qMax, int numPoints, bool ewsbBCscale)
	SLHA2 output format.
void	modselSLHA (ostream &out, const char model[])
	MODSEL block of SLHA2.
void	sminputsSLHA (ostream &out)
	SM inputs block of SLHA2.
void	vckminSLHA (ostream &out)
	VCKMIN inputs block of SLHA2.
void	minparSLHA (ostream &out, const char model[], const DoubleVector &pars, double tanb, int sgnMu, bool ewsbBCscale)
	Input SUSY parameters part of SLHA2.
virtual void	extparSLHA (ostream &out, const DoubleVector &pars, bool ewsbBCscale)
	EXTPAR block of SLHA.
virtual void	sfermionsSLHA (ostream &out)
	sfermion part of mass block output of SLHA2
virtual void	sleptonsSLHA (ostream &out)
	slepton part of mass block output of SLHA2
virtual void	sfermionmixSLHA (ostream &out)
	sfermion mixing output part of SLHA2
virtual void	selmixSLHA (ostream &out)
	charged slepton mixing part
virtual void	snumixSLHA (ostream &out)
	uncharged slepton mixing part
virtual void	yukawasSLHA (ostream &out)
	sfermionic part of mixing blocks
virtual void	msoftSLHA (ostream &out)
	MSOFT block of SLHA.
virtual void	doUpSquarks (double mt, double pizztMS, double sinthDRbarMS, int accuracy)
	flavour violating squark mass/mixing calculation
virtual void	doDownSquarks (double mb, double pizztMS, double sinthDRbarMS, int accuracy, double mt)
	flavour violating squark mass/mixing calculation
virtual void	doChargedSleptons (double mT, double pizztMS, double sinthDRbarMS, int accuracy)
	flavour violating slepton mass/mixing calculation
virtual void	doSnu (double pizztMS, int accuracy=0)
	flavour violating slepton mass/mixing calculation
virtual void	doQuarkMixing (DoubleMatrix &mDon, DoubleMatrix &mUpq)
virtual void	calcDrBarPars ()
	Organises tree-level calculation of all sparticle masses and mixings.
virtual MssmSusy	guessAtSusyMt (double tanb, const QedQcd &oneset)
void	setAngles (double lambda, double aCkm, double rhobar, double etabar)
void	sCkm (DoubleMatrix &deltaULL, DoubleMatrix &deltaURR, DoubleMatrix &deltaULR, DoubleMatrix &deltaDLL, DoubleMatrix &deltaDRR, DoubleMatrix &deltaDLR) const
void	sCkmAnalytic (double m32, double &deltaULL23, double &deltaULR23, double &deltaULL12, double &deltaDLL23, double &deltaDLR23, double &deltaDLL12) const
void	sCkmRunning (DoubleMatrix &deltaULL, DoubleMatrix &deltaURR, DoubleMatrix &deltaULR, DoubleMatrix &deltaDLL, DoubleMatrix &deltaDRR, DoubleMatrix &deltaDLR)

Detailed Description

This object is intended to be a flavoursome version of MssmSoftsusy.

Member Function Documentation

void FlavourMssmSoftsusy::calcDrBarPars ( ) [virtual]

Organises tree-level calculation of all sparticle masses and mixings.

calculates masses all at tree-level in the DRbar scheme, useful for radiative corrections.

Find the Yukawa rotation matrices such that the super-CKM basis may be defined

the following contributions are only calculated at tree-level:

These are the TRANSPOSES of the matrices defined in SLHA2.

< bail if you find a tachyon

< bail out

We want to set mu to be the one obtained from the tree-level Higgs potential for these purposes

First, must define mstop,sbot,stau and mixing angles in DRbar scheme

Restore the proper loop corrected value for mu

Reimplemented from MssmSoftsusy.

const DoubleMatrix FlavourMssmSoftsusy::displayCkm ( ) const

constructs a CKM matrix out of the magnitude of angles stored within: note that this does NOT give the running CKM matrix!

void FlavourMssmSoftsusy::doChargedSleptons	(	double	mT,
		double	pizztMS,
		double	sinthDRbarMS,
		int	accuracy
	)		`[virtual]`

flavour violating slepton mass/mixing calculation

now need to re-do 6 by 6 scalar mass matrices

Find the Yukawa rotation matrices such that the super-CKM basis may be defined

super MNS basis mass squared matrices

the following contributions are only calculated at tree-level:

add loop corrections to the family-universal pieces

Reimplemented from MssmSoftsusy.

void FlavourMssmSoftsusy::doDownSquarks	(	double	mb,
		double	pizztMS,
		double	sinthDRbarMS,
		int	accuracy,
		double	mt
	)		`[virtual]`

flavour violating squark mass/mixing calculation

now need to re-do 6 by 6 scalar mass matrices

Find the Yukawa rotation matrices such that the super-CKM basis may be defined

the following contributions are only calculated at tree-level:

add loop corrections to the family-universal pieces

p is for sbottom corrections

Reimplemented from MssmSoftsusy.

void FlavourMssmSoftsusy::doQuarkMixing	(	DoubleMatrix &	mDon,
		DoubleMatrix &	mUpq
	)		`[virtual]`

Input diagonal mass matrices and it'll give you back mixed ones, based on the CKM quark mixing matrix you supplied in vCkm.

Reimplemented from MssmSoftsusy.

void FlavourMssmSoftsusy::doSnu	(	double	pizztMS,
		int	accuracy = `0`
	)		`[virtual]`

flavour violating slepton mass/mixing calculation

Find the Yukawa rotation matrices such that the super-CKM basis may be defined

Reimplemented from MssmSoftsusy.

void FlavourMssmSoftsusy::doUpSquarks	(	double	mt,
		double	pizztMS,
		double	sinthDRbarMS,
		int	accuracy
	)		`[virtual]`

flavour violating squark mass/mixing calculation

now need to re-do 6 by 6 scalar mass matrices

super CKM basis mass squared matrices

the following contributions are only calculated at tree-level:

add loop corrections to the family-universal pieces

Reimplemented from MssmSoftsusy.

MssmSusy FlavourMssmSoftsusy::guessAtSusyMt	(	double	tanb,
		const QedQcd &	oneset
	)		`[virtual]`

Provides the first guess at a SUSY object at mt, inputting tanb and oneset (should be at MZ) - it's very crude, doesn't take radiative corrections into account etc.

Reimplemented from MssmSoftsusy.

void FlavourMssmSoftsusy::minparSLHA	(	ostream &	out,
		const char	model[],
		const DoubleVector &	pars,
		double	tanb,
		int	sgnMu,
		bool	ewsbBCscale
	)

Input SUSY parameters part of SLHA2.

For universal models, users still want to know MX and it has to be specially printed out as EXTPAR 0

Reimplemented from MssmSoftsusy.

void FlavourMssmSoftsusy::msoftSLHA ( ostream & out ) [virtual]

MSOFT block of SLHA.

Find the Yukawa rotation matrices such that the super-CKM basis may be defined

There are often high degrees of cancellation in these matrices, meaning that at the 5th significant figure, one can have asymmetries. In order to avoid problems with users' codes, these are just symmetrised.

Reimplemented from MssmSoftsusy.

void FlavourMssmSoftsusy::sCkm	(	DoubleMatrix &	deltaULL,
		DoubleMatrix &	deltaURR,
		DoubleMatrix &	deltaULR,
		DoubleMatrix &	deltaDLL,
		DoubleMatrix &	deltaDRR,
		DoubleMatrix &	deltaDLR
	)		const

Return matrices of the flavour violating mass insertion delta parameters: see hep-ph/9604387 for (old) bounds

void FlavourMssmSoftsusy::sCkmAnalytic	(	double	m32,
		double &	deltaULL23,
		double &	deltaULR23,
		double &	deltaULL12,
		double &	deltaDLL23,
		double &	deltaDLR23,
		double &	deltaDLL12
	)		const

This is my translation of Gudrun's attempt at analytic formulae for the various deltas

Ben's correction factor

void FlavourMssmSoftsusy::sCkmRunning	(	DoubleMatrix &	deltaULL,
		DoubleMatrix &	deltaURR,
		DoubleMatrix &	deltaULR,
		DoubleMatrix &	deltaDLL,
		DoubleMatrix &	deltaDRR,
		DoubleMatrix &	deltaDLR
	)

Calculates running deltas as a function of scale, in the real approximation

Find the Yukawa rotation matrices such that the super-CKM basis may be defined

the following contributions are only calculated at tree-level:

void FlavourMssmSoftsusy::setAngles	(	double	lambda,
		double	aCkm,
		double	rhobar,
		double	etabar
	)

Sets lepton flavour mixed sparticles virtual void sparticleThresholdCorrections(double tb); Sets the CKM angles given some Wolfenstein parameters (PDG) - matches up the absolute values to standard parameterisation with zero phase

void FlavourMssmSoftsusy::sfermionsSLHA ( ostream & out ) [virtual]

sfermion part of mass block output of SLHA2

SLHA2 flavour sector defined in increasing order of mass

Reimplemented from MssmSoftsusy.

void FlavourMssmSoftsusy::vckminSLHA ( ostream & out )

VCKMIN inputs block of SLHA2.

these come from 2006 PDG

void FlavourMssmSoftsusy::yukawasSLHA ( ostream & out ) [virtual]

sfermionic part of mixing blocks

Find the Yukawa rotation matrices such that the super-CKM basis may be defined

Reimplemented from MssmSoftsusy.

The documentation for this class was generated from the following files:
