MssmSusy Class Reference

Contains all supersymmetric RPC-MSSM parameters and RGEs. More...

#include <susy.h>

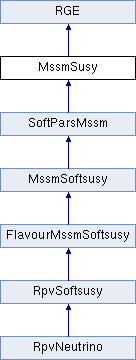

Inheritance diagram for MssmSusy:

List of all members.

Public Member Functions
	MssmSusy ()
	MssmSusy (const MssmSusy &)
	Constructor sets object to be equal to another.
	MssmSusy (const DoubleMatrix &u, const DoubleMatrix &d, const DoubleMatrix &e, const DoubleVector &v, double m, double tb, double MU, int l, int t, double h)
const MssmSusy &	operator= (const MssmSusy &s)
	Default destructor.
void	setSusy (const MssmSusy &s)
	sets object to be equal to another
void	setHvev (double h)
	Sets DRbar running Higgs vev.
void	setSomePars (const MssmSusy &s)
	Copies Yukawa matrices and gauge couplings from s only.
void	setYukawaElement (yukawa, int, int, double)
	Sets one element of a Yukawa matrix.
void	setYukawaMatrix (yukawa, const DoubleMatrix &)
	Sets whole Yukawa matrix.
void	setGaugeCoupling (int, double)
	Set a single gauge coupling.
void	setAllGauge (const DoubleVector &)
	Set all gauge couplings.
void	setSusyMu (double)
	Sets superpotential mu parameter.
void	set (const DoubleVector &)
	Sets all RGE parameters to elements of vector.
void	setTanb (double)
	Sets tan beta.
double	displayHvev () const
	Returns DRbar running Higgs vev.
const MssmSusy &	displaySusy () const
	Returns whole object as a const.
double	displayYukawaElement (yukawa, int, int) const
	Returns a single Yukawa matrix element.
const DoubleMatrix &	displayYukawaMatrix (yukawa) const
	Returns a whole Yukawa matrix.
double	displayGaugeCoupling (int) const
	Returns a single gauge coupling.
DoubleVector	displayGauge () const
	Returns all gauge couplings.
double	displaySusyMu () const
	Returns superpotential mu parameter.
const DoubleVector	display () const
	Returns all parameters as elements of a vector.
double	displayTanb () const
	Returns tan beta.
void	getMasses (QedQcd &r, double vev) const
void	quarkMixing (const DoubleMatrix &CKM, int mix)
void	setDiagYukawas (const QedQcd &, double vev)
void	getQuarkMixedYukawas (const QedQcd &r, const DoubleMatrix &CKM, int mix, double vev)
DoubleVector	beta () const
	Calculate beta functions of SUSY preserving parameters of RPC MSSM.
MssmSusy	beta (sBrevity &) const
	Calculate beta functions of SUSY preserving parameters of RPC MSSM.
void	getOneLpAnom (DoubleMatrix &gEE, DoubleMatrix &gLL, DoubleMatrix &gQQ, DoubleMatrix &gDD, DoubleMatrix &gUU, double &gH1H1, double &gH2H2, sBrevity &a) const
void	getTwoLpAnom (DoubleMatrix &gEE, DoubleMatrix &gLL, DoubleMatrix &gQQ, DoubleMatrix &gDD, DoubleMatrix &gUU, double &gH1H1, double &gH2H2, sBrevity &a) const
void	getThreeLpAnom (DoubleMatrix &gEE, DoubleMatrix &gLL, DoubleMatrix &gQQ, DoubleMatrix &gDD, DoubleMatrix &gUU, double &gH1H1, double &gH2H2, sBrevity &a) const
	By Bednyakov, see arXiv:1009.5455.
void	anomalousDimension (DoubleMatrix &gEE, DoubleMatrix &gLL, DoubleMatrix &gQQ, DoubleMatrix &gUU, DoubleMatrix &gDD, DoubleVector &dg, double &gH1H1, double &gH2H2, sBrevity &a) const
void	diagQuarkBasis (DoubleMatrix &vdl, DoubleMatrix &vdr, DoubleMatrix &vul, DoubleMatrix &vur) const

---

Detailed Description

Contains all supersymmetric RPC-MSSM parameters and RGEs.

---

Constructor & Destructor Documentation

MssmSusy::MssmSusy

(

)

Constructor fills object with zeroes by default

MssmSusy::MssmSusy	(	const DoubleMatrix &	u,
		const DoubleMatrix &	d,
		const DoubleMatrix &	e,
		const DoubleVector &	v,
		double	m,
		double	tb,
		double	MU,
		int	l,
		int	t,
		double	h
	)

Constructor given Yukawa matrices u,d,e, gauge couplings v, mu parameter=m, tan beta=tb, renormalisation scale MU, number of loops in RG evolution l and thresholds parameter t

---

Member Function Documentation

void MssmSusy::anomalousDimension	(	DoubleMatrix &	gEE,
		DoubleMatrix &	gLL,
		DoubleMatrix &	gQQ,
		DoubleMatrix &	gUU,
		DoubleMatrix &	gDD,
		DoubleVector &	dg,
		double &	gH1H1,
		double &	gH2H2,
		sBrevity &	a
	)		const

Outputs wave function renormalisation for SUSY parameters and gauge beta functions up to 2 loops. Also calculates and outputs a. IO parameters: RH leptons, LH leptons, LH quarks, RH downs, RH ups, H1 and H2 respectively. g^Li_Lj = m_{ij} for LH fields g^Ei_Ej = m_{ji} for RH fields

MssmSusy MssmSusy::beta

(

sBrevity &

a

)

const

Calculate beta functions of SUSY preserving parameters of RPC MSSM.

One-loop RGEs in Feynman gauge

Two-loop pieces

void MssmSusy::diagQuarkBasis	(	DoubleMatrix &	vdl,
		DoubleMatrix &	vdr,
		DoubleMatrix &	vul,
		DoubleMatrix &	vur
	)		const

Rotates to quark mass basis, returning the mixing matrices defined as = vul vur^+, = vdl vdr^+ All matrices should be 3 by 3

void MssmSusy::getMasses	(	QedQcd &	r,
		double	vev
	)		const

outputs object QedQcd & r valid at 1 GeV from SUSY data at mt, from diagonal elements of Yukawa couplings and Higgs VEV vev.

void MssmSusy::getOneLpAnom	(	DoubleMatrix &	gEE,
		DoubleMatrix &	gLL,
		DoubleMatrix &	gQQ,
		DoubleMatrix &	gDD,
		DoubleMatrix &	gUU,
		double &	gH1H1,
		double &	gH2H2,
		sBrevity &	a
	)		const

Outputs one-loop anomlous dimensions gii given matrix inputs. for RH leptons, LH leptons, LH quarks, RH downs, RH ups, H1 and H2 respectively. Note that we use the convention (for matrices in terms of gamma's): gamma^Li_Lj = M_ij for LH fields and gamma^Rj_Ri = M_ij for RH fields (since they are really the complex conjugates of the RH fields). a should already be defined.

void MssmSusy::getQuarkMixedYukawas	(	const QedQcd &	r,
		const DoubleMatrix &	CKM,
		int	mix,
		double	vev
	)

Defines mixed Yukawa matrices from data input in form of CKM matrix and r, vev. If mix=2, all mixing is in down sector mix=1, all mixing is in up sector

void MssmSusy::getThreeLpAnom	(	DoubleMatrix &	gEE,
		DoubleMatrix &	gLL,
		DoubleMatrix &	gQQ,
		DoubleMatrix &	gDD,
		DoubleMatrix &	gUU,
		double &	gH1H1,
		double &	gH2H2,
		sBrevity &	a
	)		const

By Bednyakov, see arXiv:1009.5455.

Calculates three-loop anomalous dimensions in the dominant third family approximation and adds them

powers of gauge couplings

< 1/(16 pi^2)^3

< 6 Zeta(3)

For calculational brevity NB Change notation to that of J&J hep-ph/0408128 (Y->Y^T , etc)

Everything gets the (1/16pi^2)^3 factor at the bottom

void MssmSusy::getTwoLpAnom	(	DoubleMatrix &	gEE,
		DoubleMatrix &	gLL,
		DoubleMatrix &	gQQ,
		DoubleMatrix &	gDD,
		DoubleMatrix &	gUU,
		double &	gH1H1,
		double &	gH2H2,
		sBrevity &	a
	)		const

Outputs two-loop anomlous dimensions gii given matrix inputs. for RH leptons, LH leptons, LH quarks, RH downs, RH ups, H1 and H2 respectively. Note that we use the convention (for matrices in terms of gamma's): gamma^Li_Lj = M_ij for LH fields and gamma^Rj_Ri = M_ij for RH fields (since they are really the complex conjugates of the RH fields). a should already be defined.

const MssmSusy & MssmSusy::operator=

(

const MssmSusy &

s

)

Default destructor.

sets object to be equal to another

void MssmSusy::quarkMixing	(	const DoubleMatrix &	CKM,
		int	mix
	)

This turns diagonal Yukawa couplings at MZ into CKM mixed ones Takes diagonal quark Yukawa matrices and mixes them up according to the CKM matrix assuming: mix=2, all mixing is in down sector mix=1, all mixing is in up sector

void MssmSusy::setDiagYukawas	(	const QedQcd &	r,
		double	vev
	)

Sets diagonal Yukawa couplings according to data in QedQcd input and Higgs VEV parameter vev=

---

The documentation for this class was generated from the following files:

• susy.h
• susy.cpp
