RGE Class Reference

Describes a set of parameters and RGEs in general. More...

#include <rge.h>

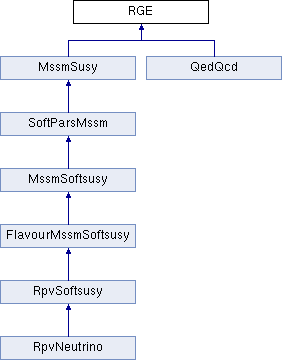

Inheritance diagram for RGE:

List of all members.

Public Member Functions
	RGE ()
	Default constructor fills data with zeroes.
void	setMu (double e)
	Sets renormalisation scale to e.
virtual void	setmu (double f)
void	setPars (int i)
	Set number of parameters in RGE object.
void	setLoops (int l)
	Set number of loops used.
void	setThresholds (int t)
double	displayMu () const
	Return renomalisation scale.
int	displayLoops () const
	Return number of loops.
int	howMany () const
	Return number of parameters.
int	displayThresholds () const
	Return level of threshold approximation.
virtual const DoubleVector	display () const =0
virtual void	set (const DoubleVector &s)=0
virtual DoubleVector	beta () const =0
	Beta functions - all RGE objects must have them.
virtual int	run (double from, double to, double eps=-1.0)
	Runs parameters from scale "from" to "to, eps is fractional accuracy.
virtual int	runto (double to, double eps=-1.0)
	Runs parameters to scale "to", eps is accuracy.
int	callRK (double x1, double x2, DoubleVector &v, DoubleVector(*derivs)(double, const DoubleVector &), double eps=-1.0)

---

Detailed Description

Describes a set of parameters and RGEs in general.

---

Member Function Documentation

int RGE::callRK	(	double	x1,
		double	x2,
		DoubleVector &	v,
		DoubleVector(*)(double, const DoubleVector &)	derivs,
		double	eps = -1.0
	)

Does the actual calling of Runge Kutta: default precision is TOLERANCE. Returns >0 if there's a problem with the running. IO parameters: x1=start renormalisation scale, x2=end renormalisation scale, v=boundary condition on parameters to be run on input, but gets changed to calculated final values on output, function to calculate derivatives are encoded in *derivs, eps is the numerical accuracy

virtual const DoubleVector RGE::display

(

)

const [pure virtual]

Displays all RGE parameters in a double vector. Obligatory function for derived classes.

Implemented in MssmSusy, QedQcd, SoftParsMssm, and RpvSoftsusy.

virtual void RGE::set

(

const DoubleVector &

s

)

[pure virtual]

Sets all parameters in an RGE object to the contents of s. It's an obligatory function for a derived class.

Implemented in SoftParsMssm, MssmSusy, QedQcd, and RpvSoftsusy.

virtual void RGE::setmu

(

double

f

)

[inline, virtual]

Default is to just set mu, but if you've got a derived class, you may like to call several setMu's.

void RGE::setThresholds

(

int

t

)

[inline]

Set level of threshold approximation used. It's typically used in the beta functions or boundary conditions.

---

The documentation for this class was generated from the following files:

• rge.h
• rge.cpp
